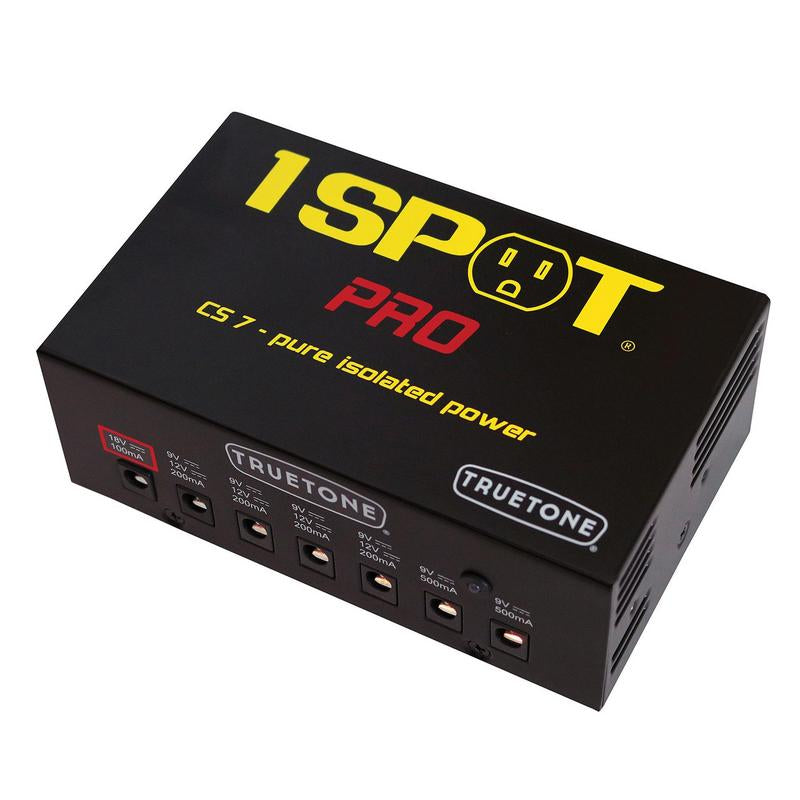

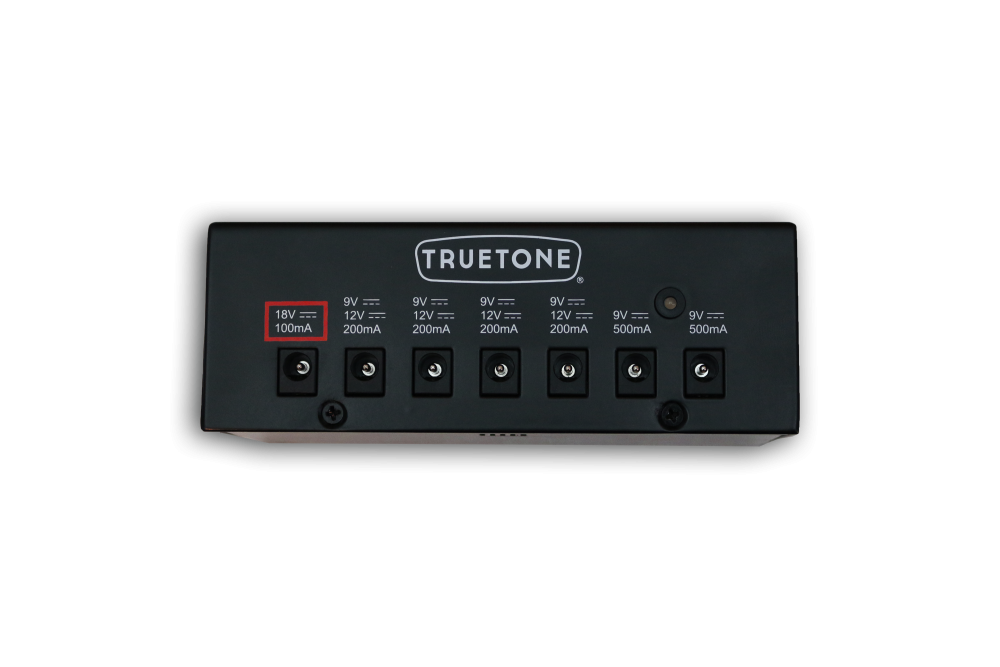

Outputs:
Output 1: 18VDC (100mA)

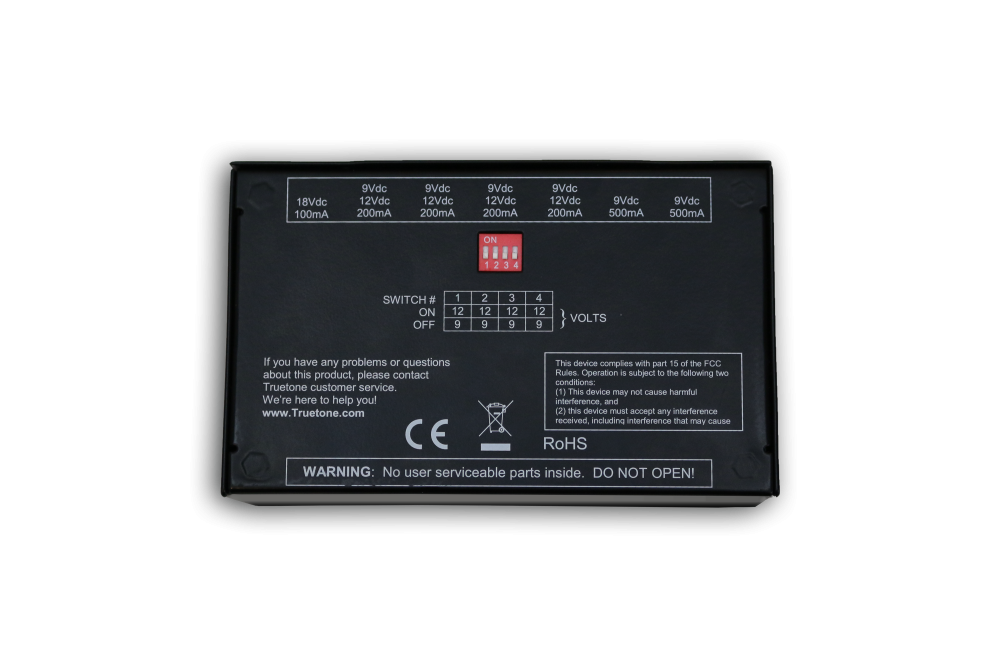

Outputs 2-5: 9VDC or 12VDC (200mA)
Outputs 6-7: 9VDC (500mA)
Maximum Total Current Output:
1900mA

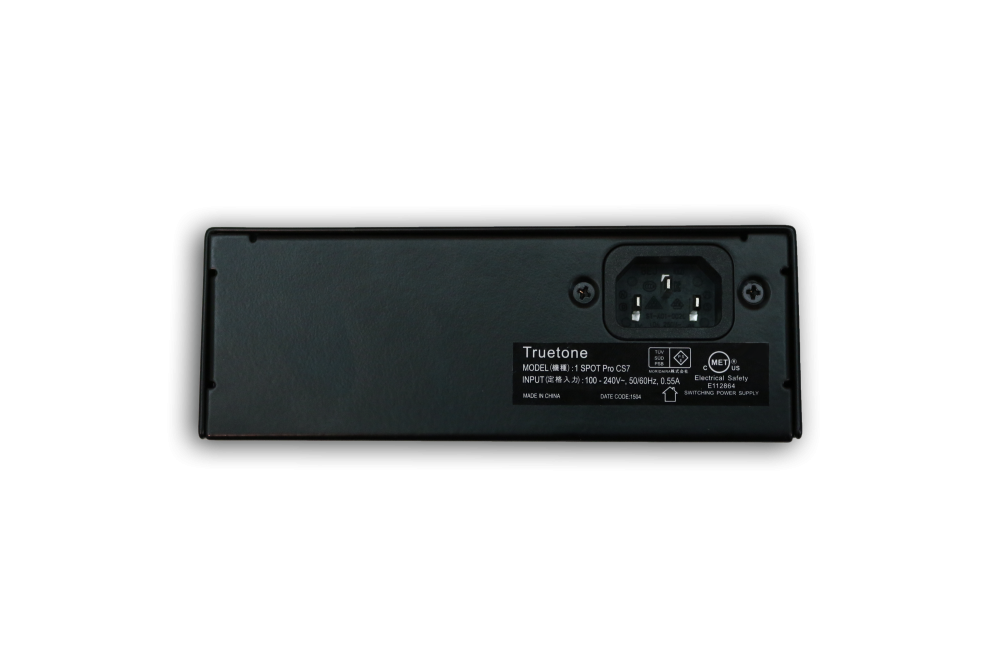

Worldwide Input Voltage

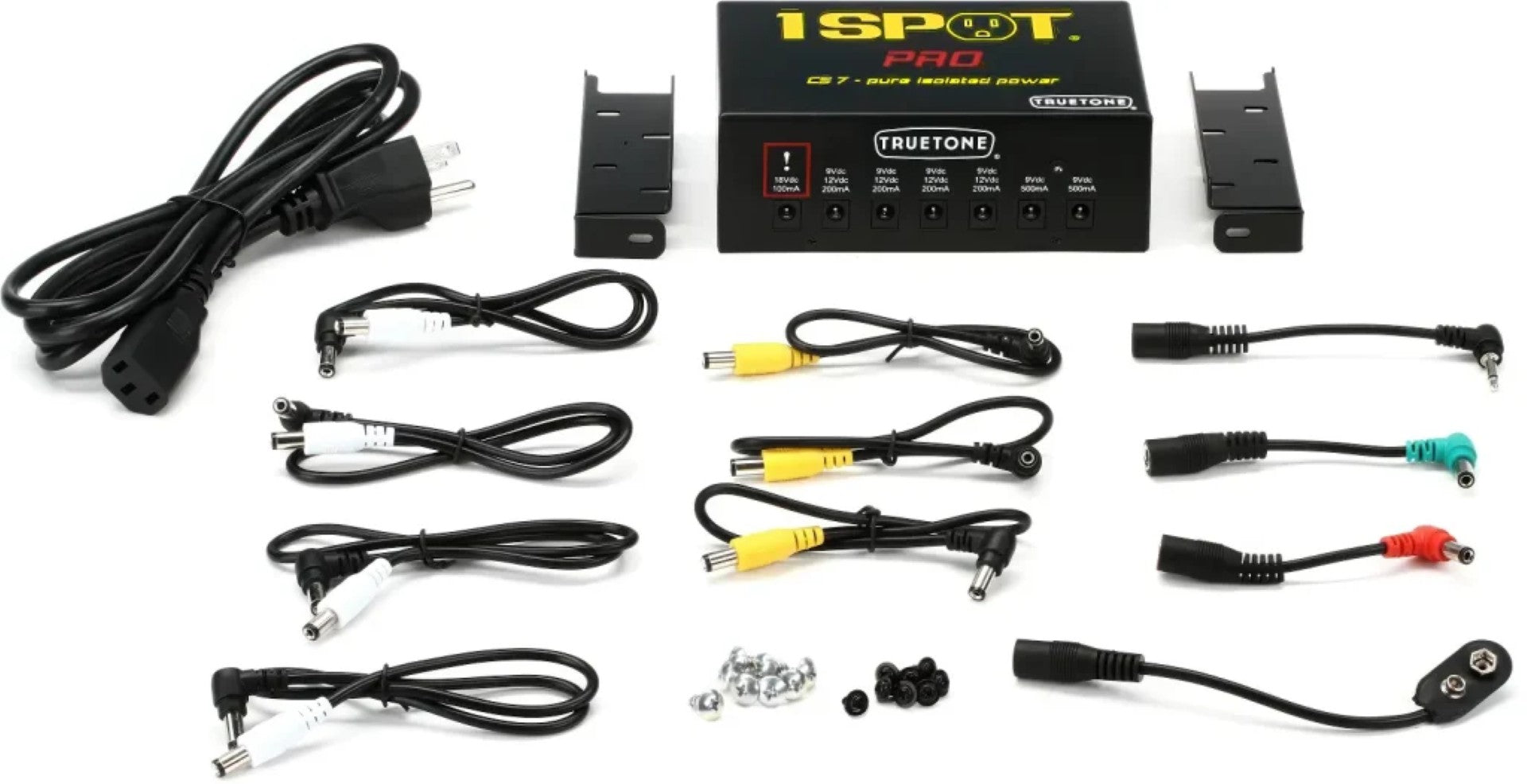

Power cables
(all are center pin negative polarity):
(4) DC18 (5.5x2.1mm barrel plugs; 18" (457mm) - White
(3) DC12 (5.5x2.1mm barrel plugs; 12" (305mm) - Yellow
Converter Plugs:
(1) CL6 - (5.5x2.1mm barrel input, 5.5x2.5 barrel output; reverse polarity)
Green - for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) CYR - (5.5x2.1mm barrel input, 5.5x2.1 barrel output; reverse polarity)
Red - reverse polarity converter
(1) C35 - (5.5x2.1mm barrel input, 3.5mm male output; tip positive)
Black - 3.5mm (1/8") plug converter
(1) CBAT - (5.5x2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!
Dimensions:
5.5" x 3.37" x 2" (140 x 86 x 50mm); 1.31 lbs. (592 grams)
