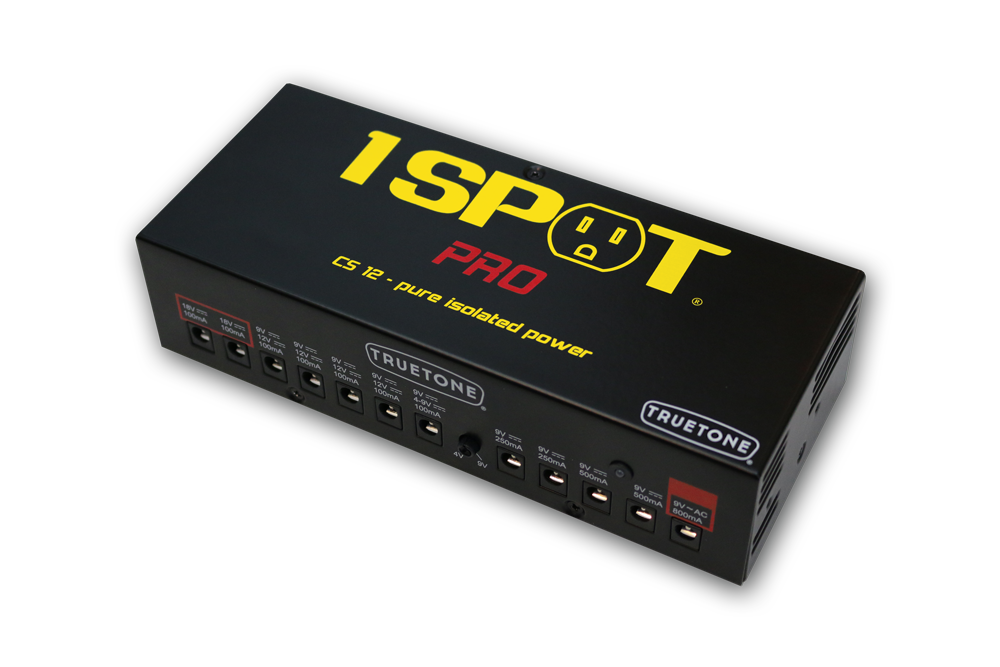

Outputs:

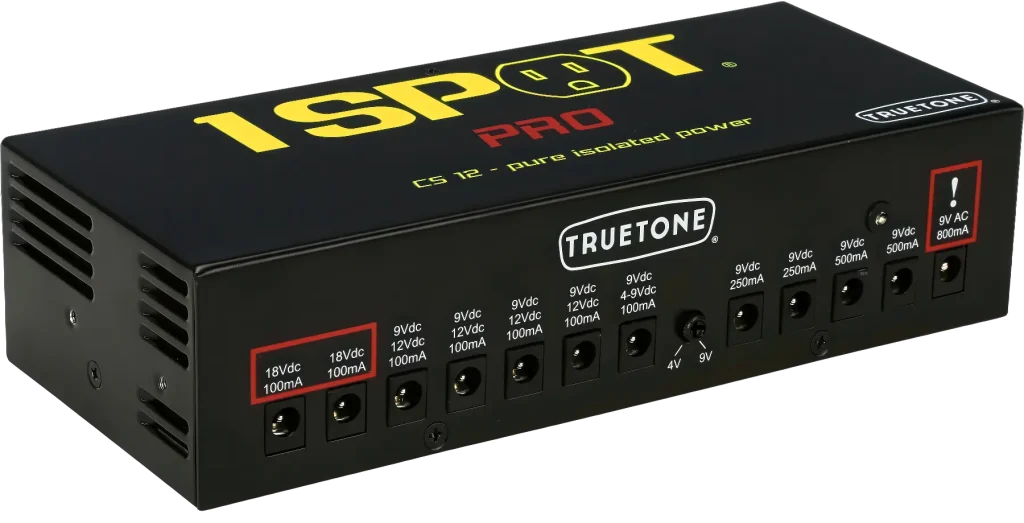

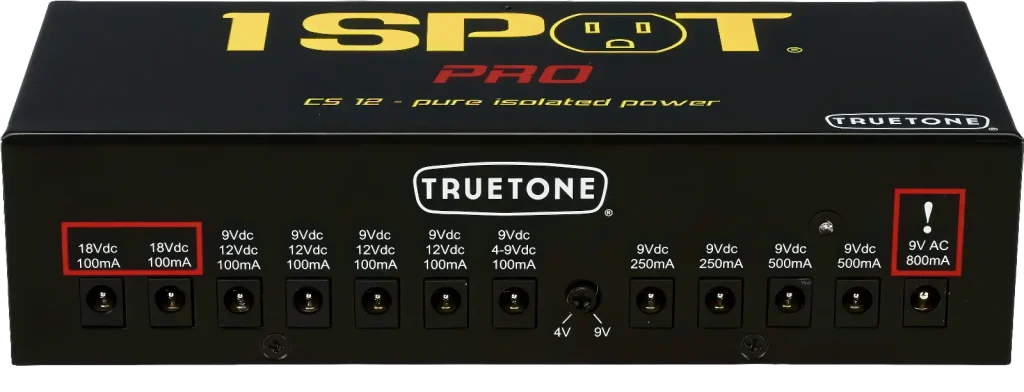

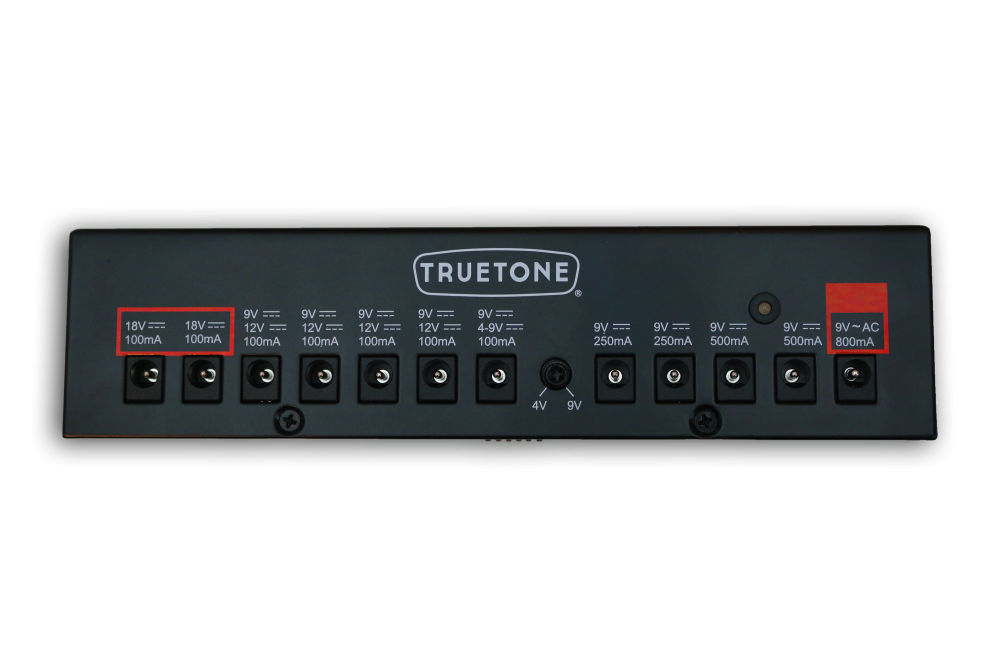

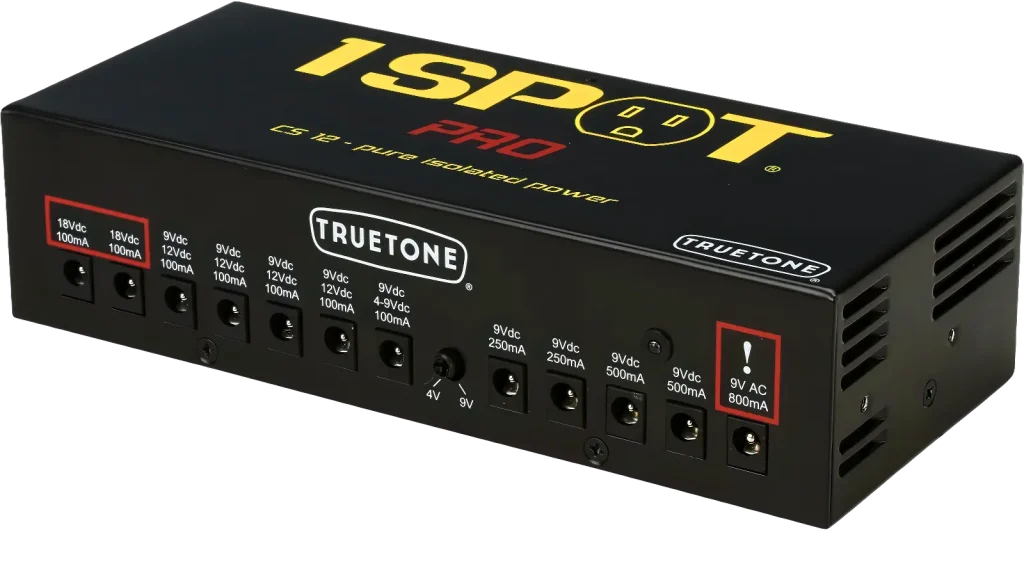

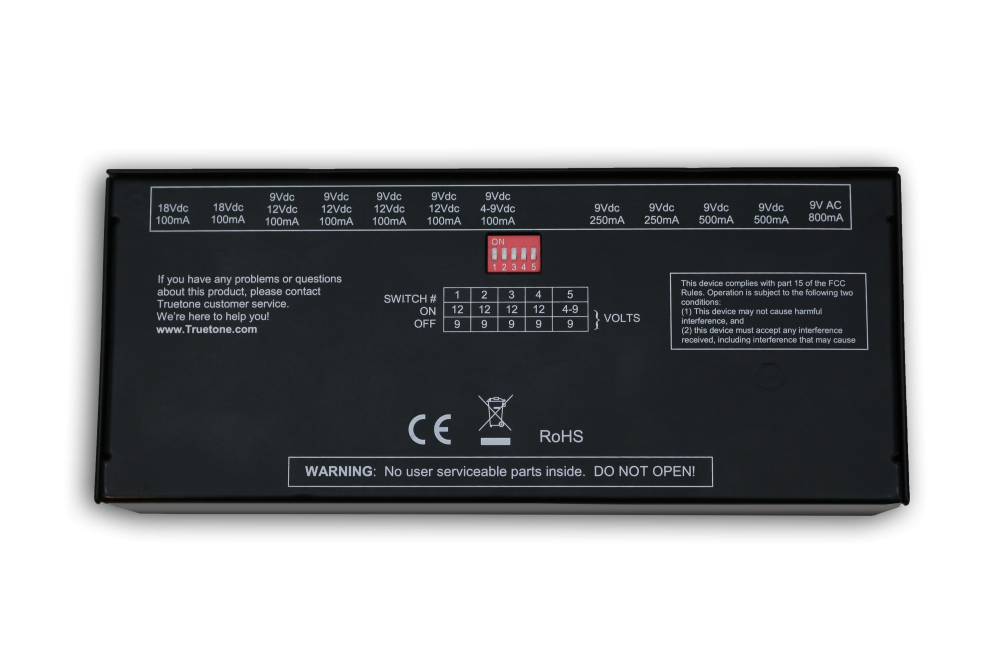

Outputs 1-2: 18VDC (100mA)
Outputs 3-6: 9VDC or 12VDC (100mA)
Output 7: 9VDC or variable 4-9VDC (100mA)
Outputs 8-9: 9VDC (250mA)
Outputs 10-11: 9VDC (500mA)
Output 12: 9VAC (800mA)
Maximum Total Current Output:
3450mA

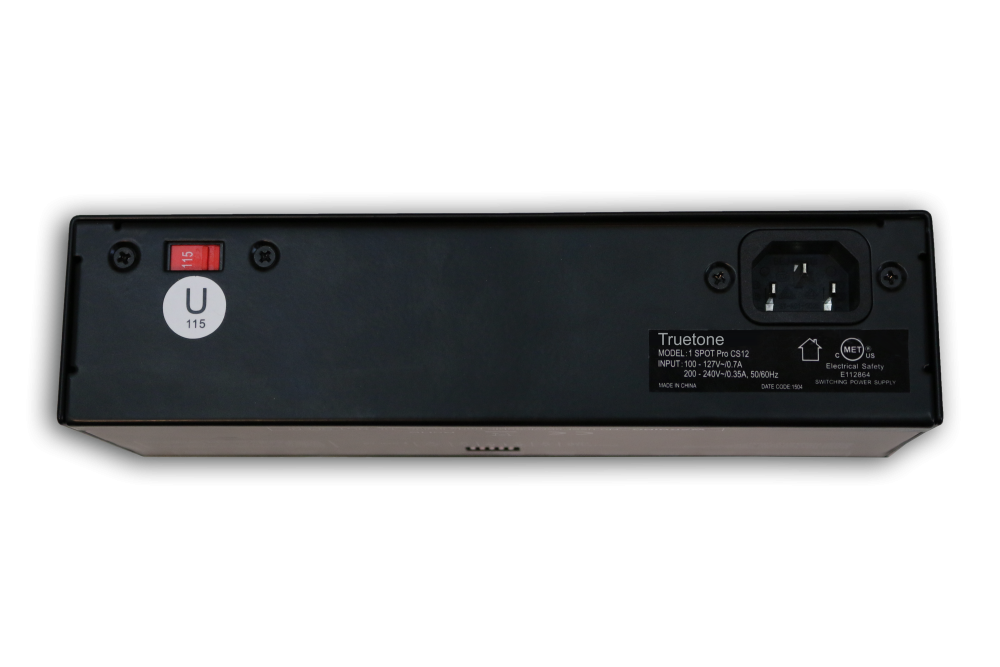

Worldwide Input Voltage

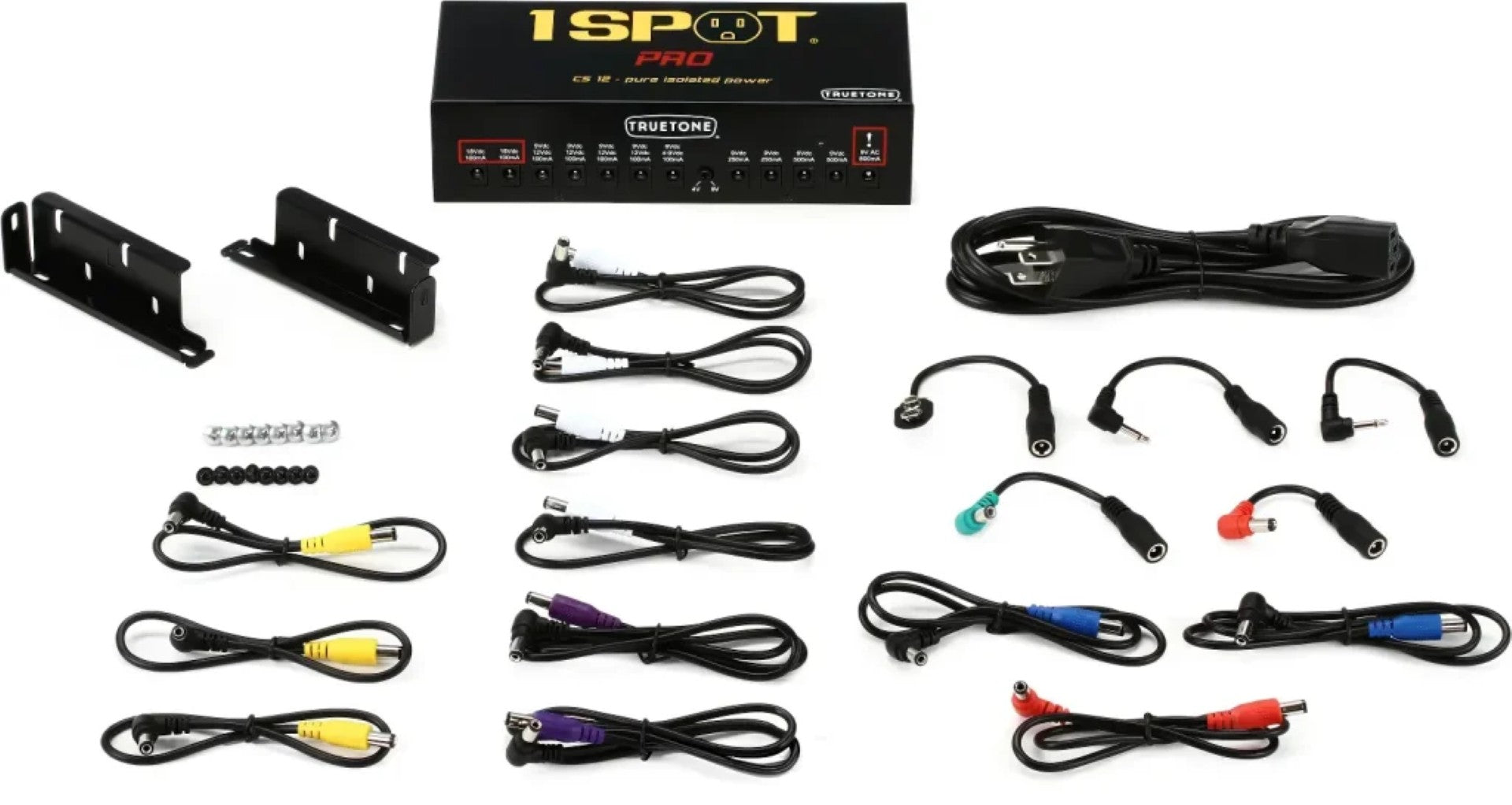

Power cables (all are center pin negative polarity):
(2) DC26 (5.5x2.1mm barrel plugs; 26" (660mm) - Purple
(2) DC22 (5.5x2.1mm barrel plugs; 22" (559mm) - Blue
(4) DC18 (5.5x2.1mm barrel plugs; 18" (457mm) - White
(3) DC12 (5.5x2.1mm barrel plugs; 12" (305mm) - Yellow
(1) AC21 (5.5x2.5mm barrel plugs; 21" (533mm) - Red
Converter Plugs:
(1) CL6 - (5.5x2.1mm barrel input, 5.5x2.5 barrel output; reverse polarity)
Green - for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) CYR - (5.5x2.1mm barrel input, 5.5x2.1 barrel output; reverse polarity)
Red - reverse polarity converter
(2) C35 - (5.5x2.1mm barrel input, 3.5mm male output; tip positive)
Black - 3.5mm (1/8") plug converter
(1) CBAT - (5.5x2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!
Dimensions:
8.12" x 3.37" x 2" (206 x 86 x 50mm); 2.35 lbs. (1.06 Kg.)
Mounts under Pedaltrain Jr., PT2 and Pro boards
