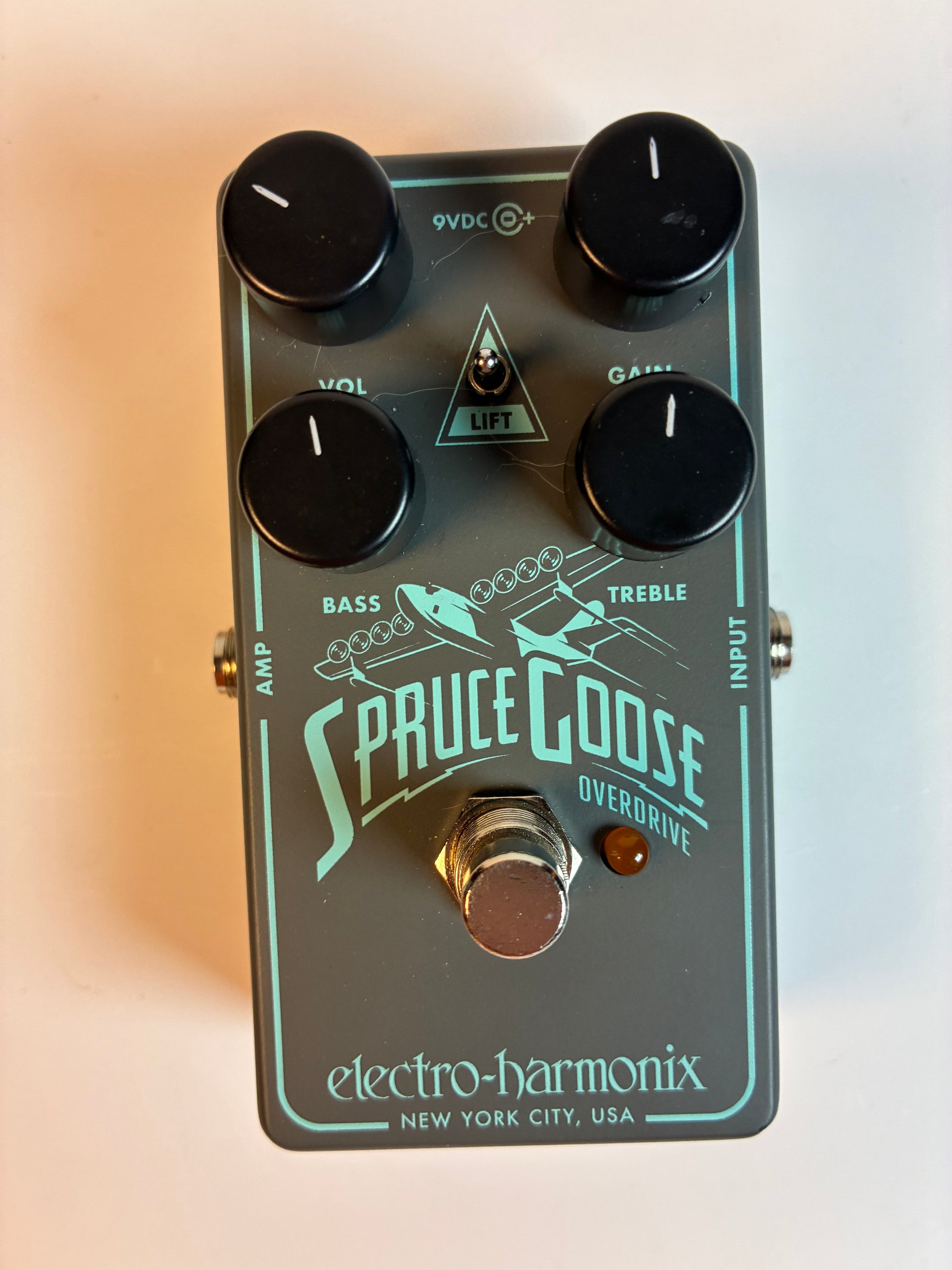

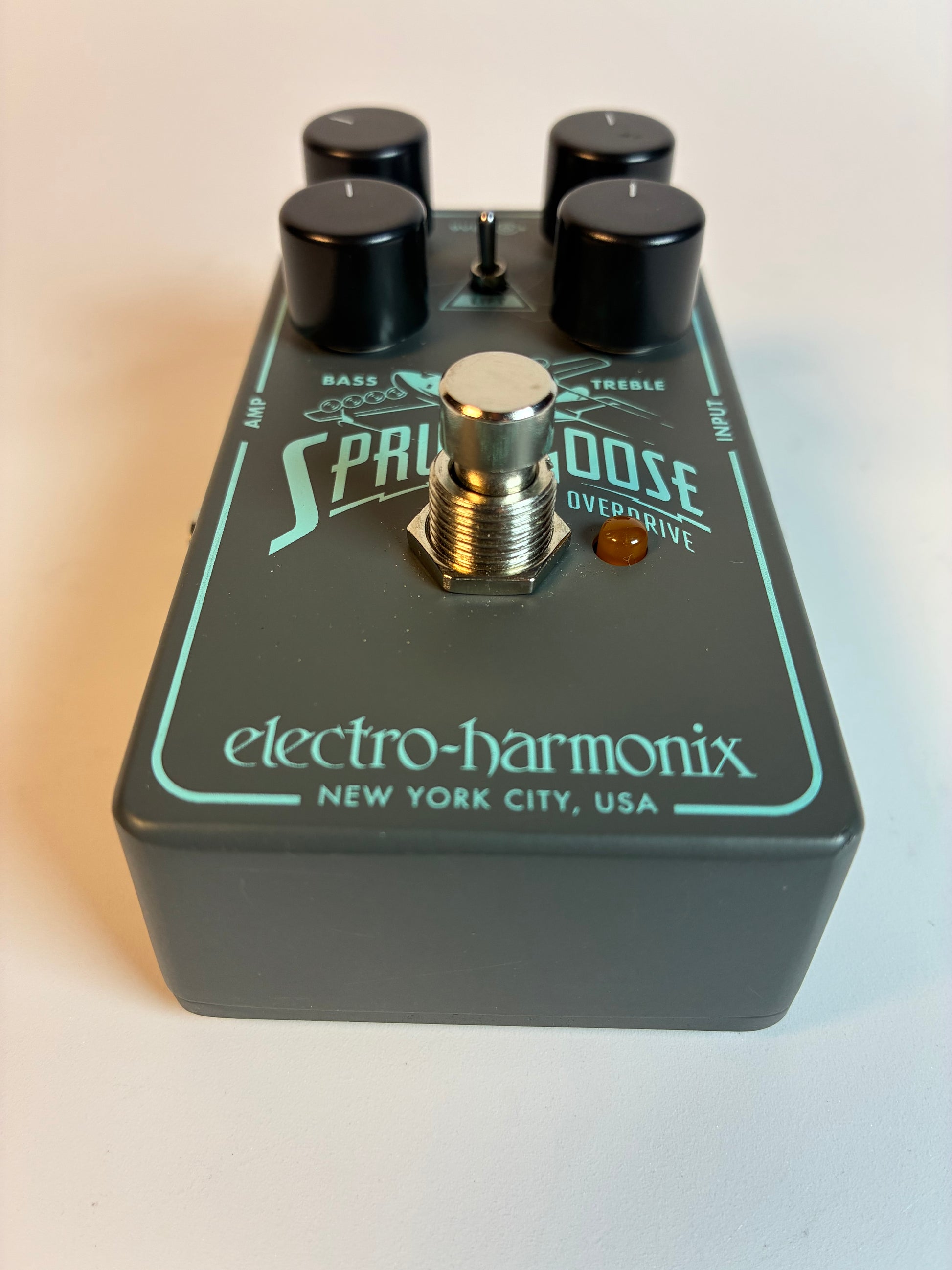

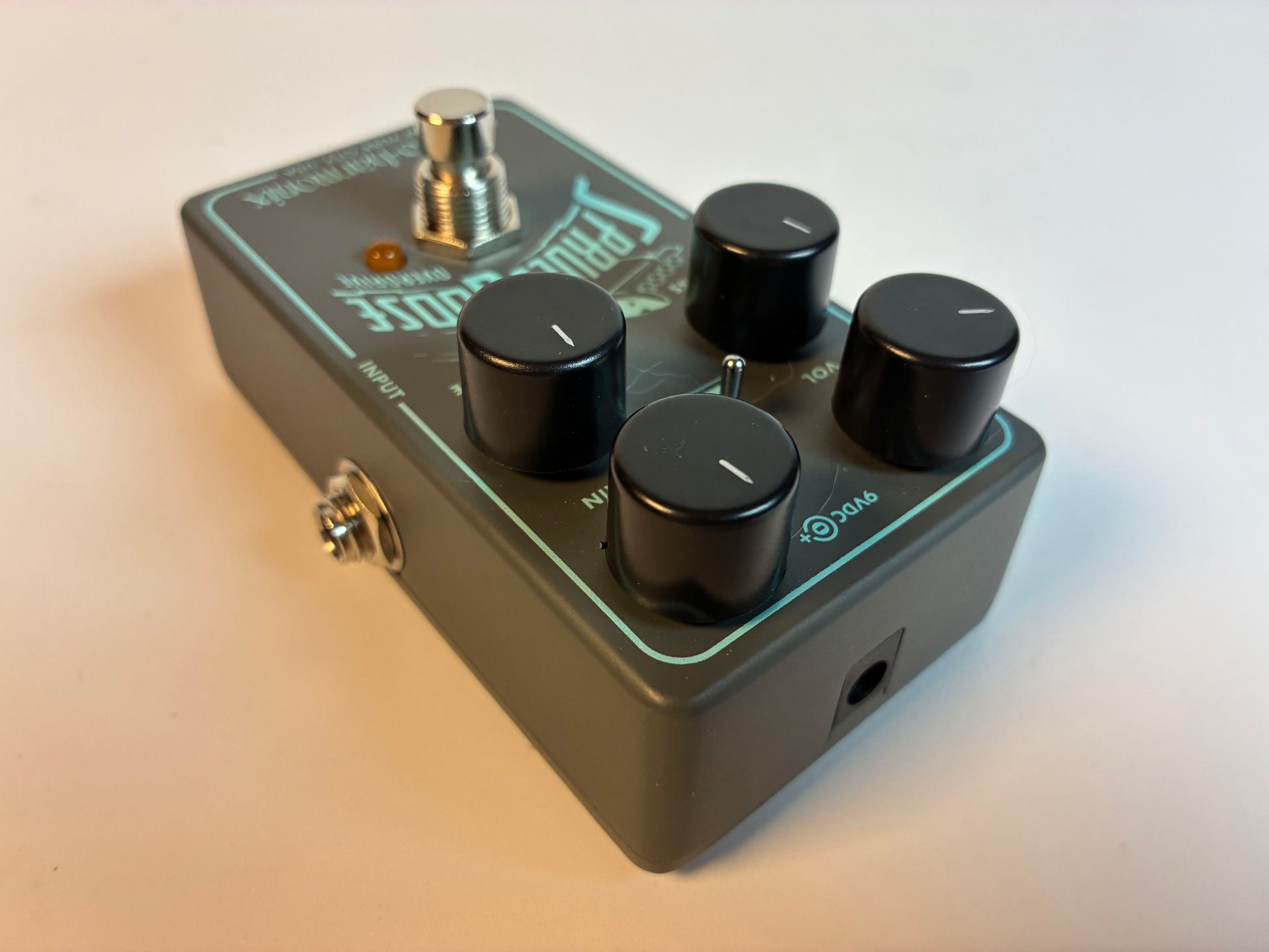

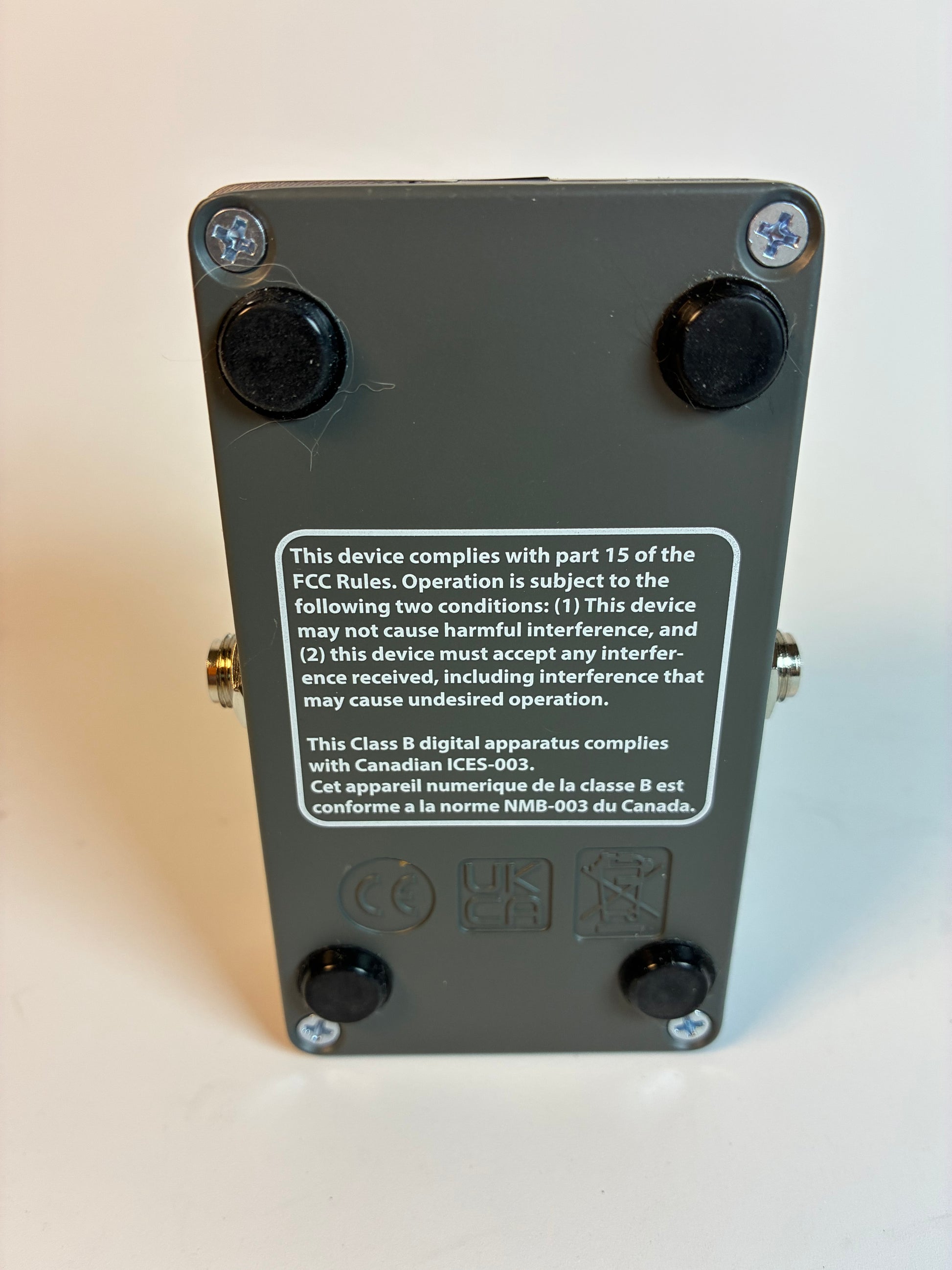

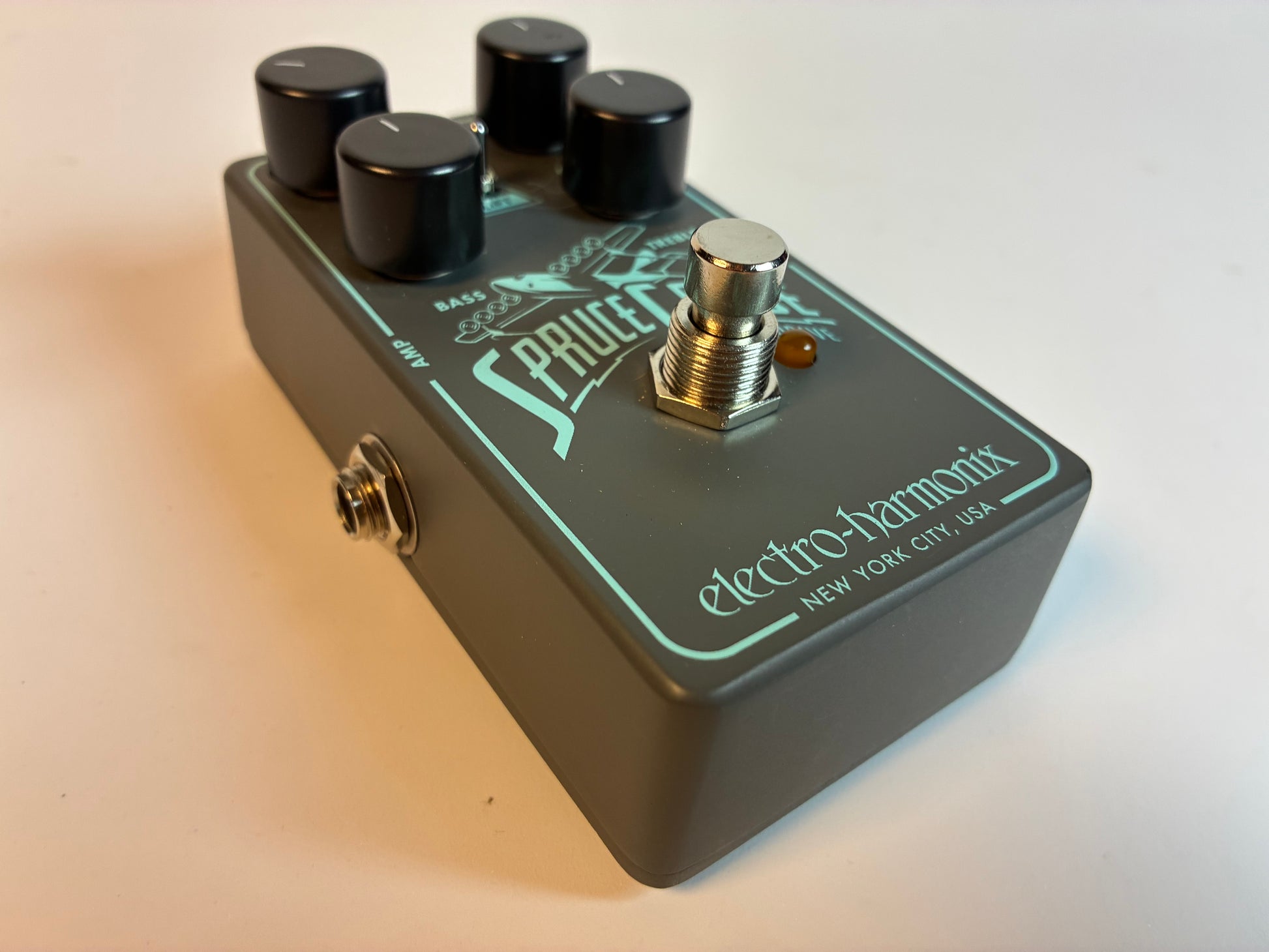

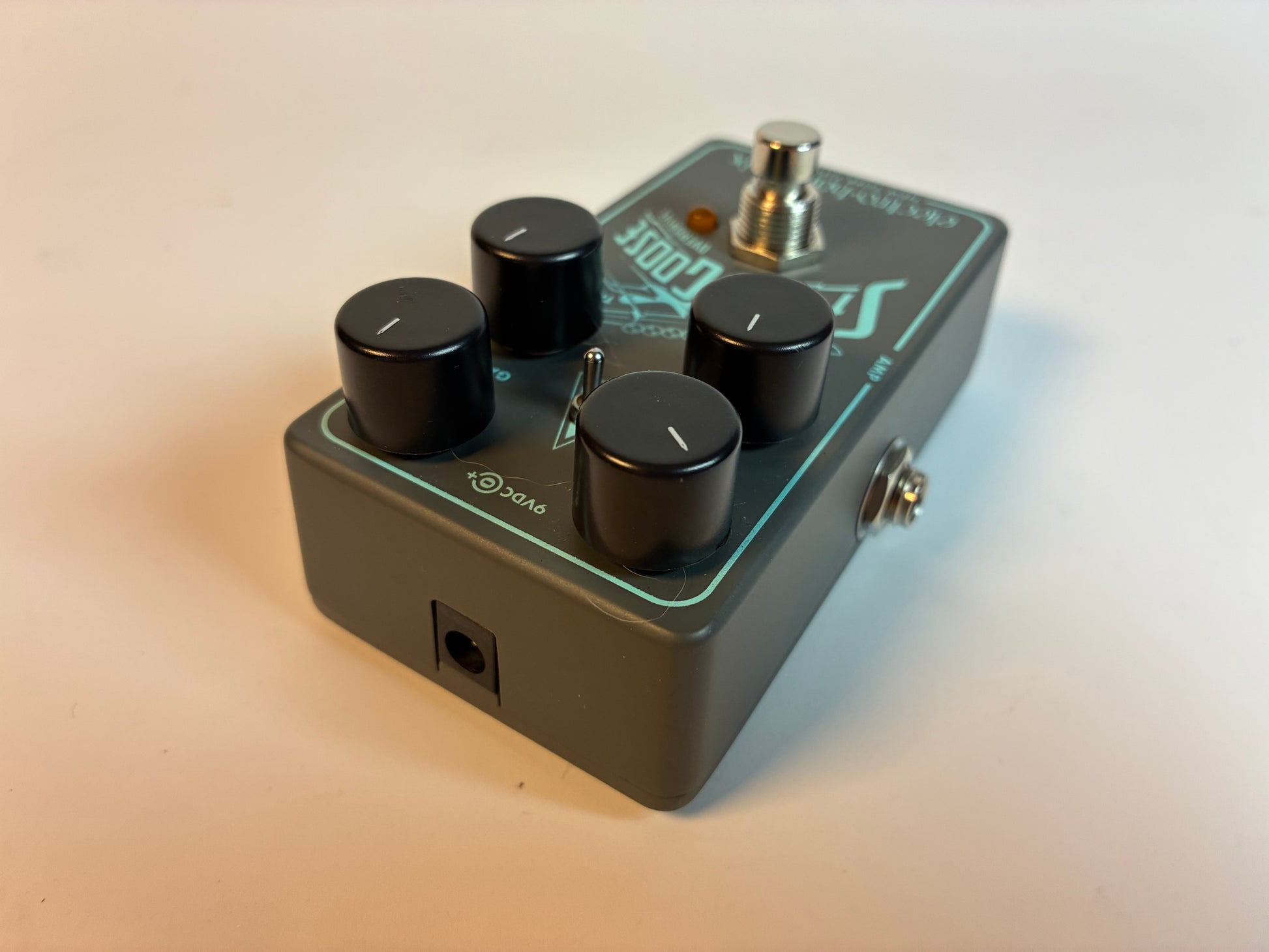

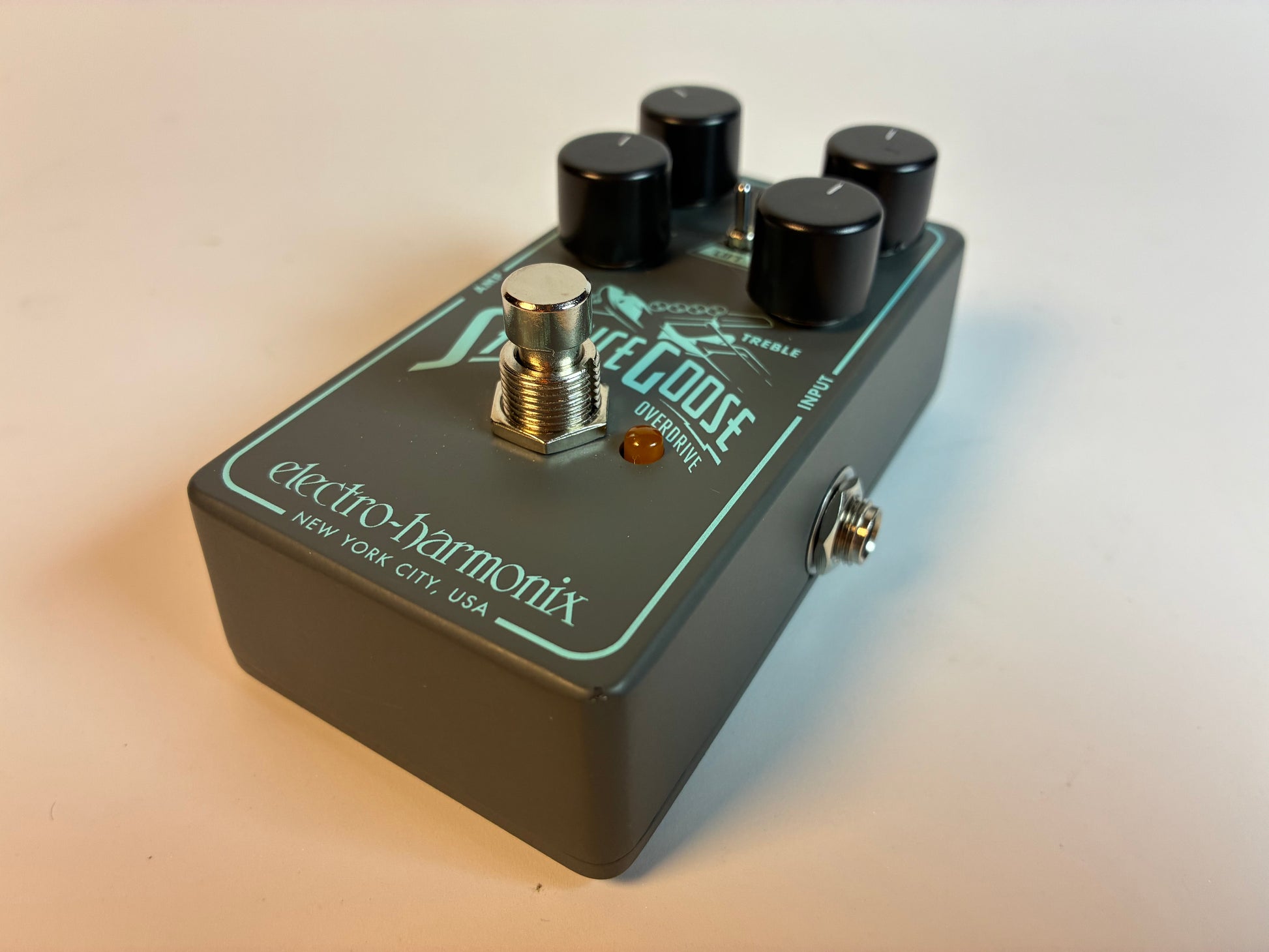

Electro-Harmonix Spruce Goose Overdrive - Excellent Condition

The Electro-Harmonix Spruce Goose is a Bluesbreaker-style overdrive with natural breakup and amp-like response. It has a LIFT switch for three levels of input gainGÇö0dB, +9dB, +21dBGÇöthat boosts the front end for more compression and saturation while keeping dynamics intact. GAIN and VOL knobs set drive and output levels precisely.EQ includes a TREBLE knob to cut harsh highs and an active BASS knob to boost or cut lows, helping single-coils gain girth or tightening humbuckers. The soft footswitch offers mechanical relay true bypass with latching toggle or press-and-hold momentary mode for quick bursts.Dimensions are compact at 2.1 in height, 2.75 in width, 4.5 in depth. Runs on 9VDC center-negative power, drawing 20mA. Input impedance 680k+¬, output 550+¬.Specifications

• Dimensions: 2.1 in x 2.75 in x 4.5 in (H x W x D)
• Power: 9VDC center-negative, 20mA
• Bypass: mechanical relay true bypass
• Controls: VOL, GAIN, TREBLE, active BASS, 3-position LIFT switch (+0/+9/+21dB input gain)
• Footswitch: latching and momentary

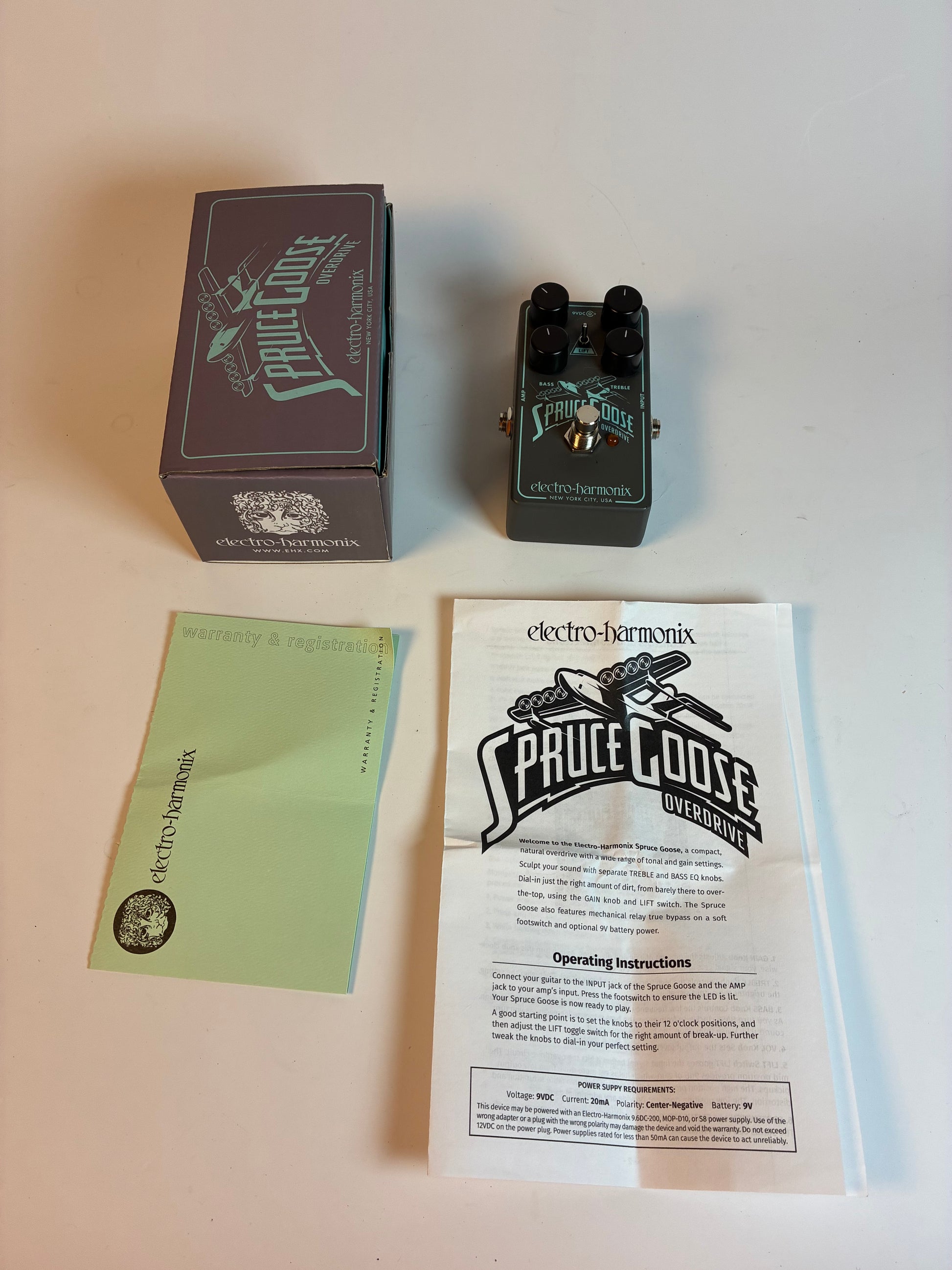

ConditionThis item has been tested and is in good working condition. It comes with original packaging and documents, as pictured. It has no Velcro on the back. No power supply included.
